DIXON Valves, Filters and Sanitary Fittings

Eagle bellows and cryogenic valves, ball valves, gate valves, check and safety valves, filter housings and elements, sanitary strainers and marine equipment.

Request a quotation Full catalog

The range covers general-purpose industrial valves, valves for steam and cryogenic media, filtration equipment for the food, chemical and oil and gas industries, and sanitary fittings for food and pharmaceutical production.

Eagle bellows sealed valves

A bellows stem seal eliminates packing leaks — for general industrial use. Sizes ½", ¾", 1", 1½", 2".

G8 — bellows sealed globe valve

bolted bonnet

Classes: 150 / 300 / 600 / 800
Body and bonnet: forged A105N or F316L
Bellows: Inconel 625
Ends: socket weld, threaded, flanged
Standards: API 602, ASME B16.5, B1.20.1, B16.10; bellows — MSS SP-117
Cv: 2,7 (½") … 23 (2")

GY — Y-pattern globe valve

welded bonnet

Class: 800
Body: A105N
Bellows: stainless steel 321
Disc: 420 SS with Stellite overlay
Packing: graphite

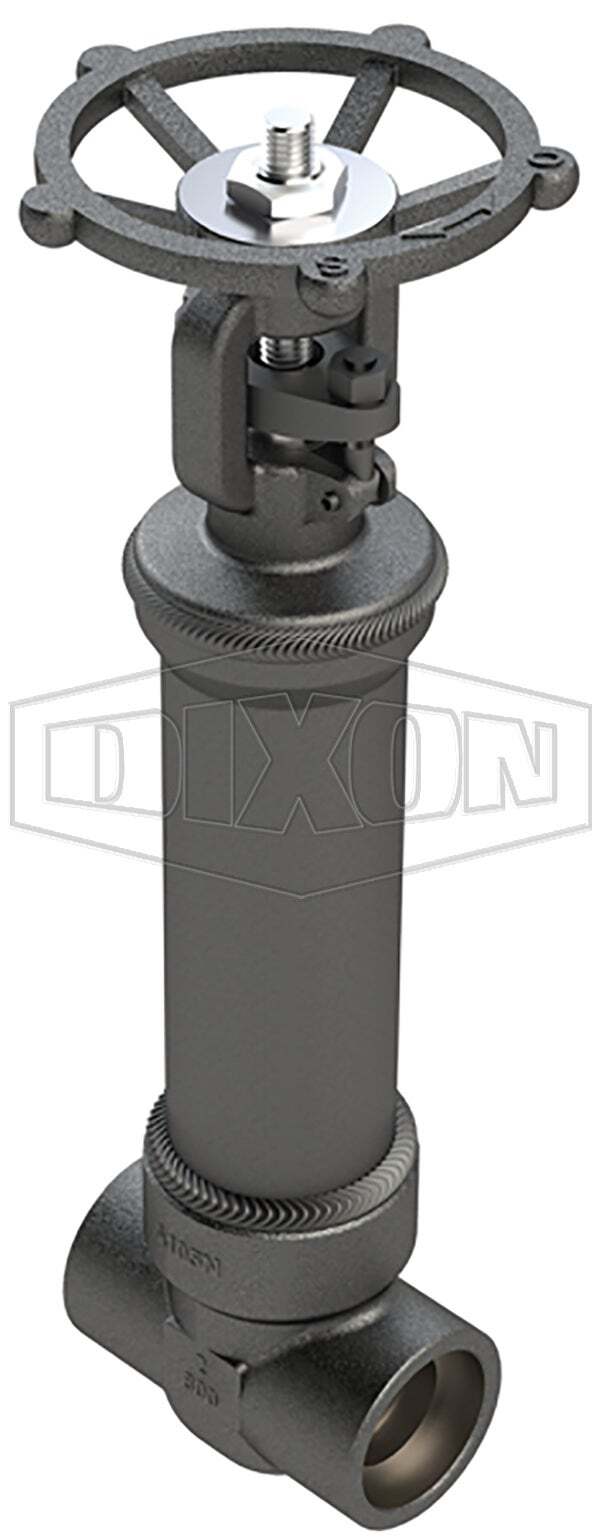

H8 — bellows sealed gate valve

welded bonnet

Classes: 150 / 300 / 600 / 800
Body: A105N
Bellows: stainless steel 321
Seat: 316 with Stellite overlay
Wedge: 420 SS

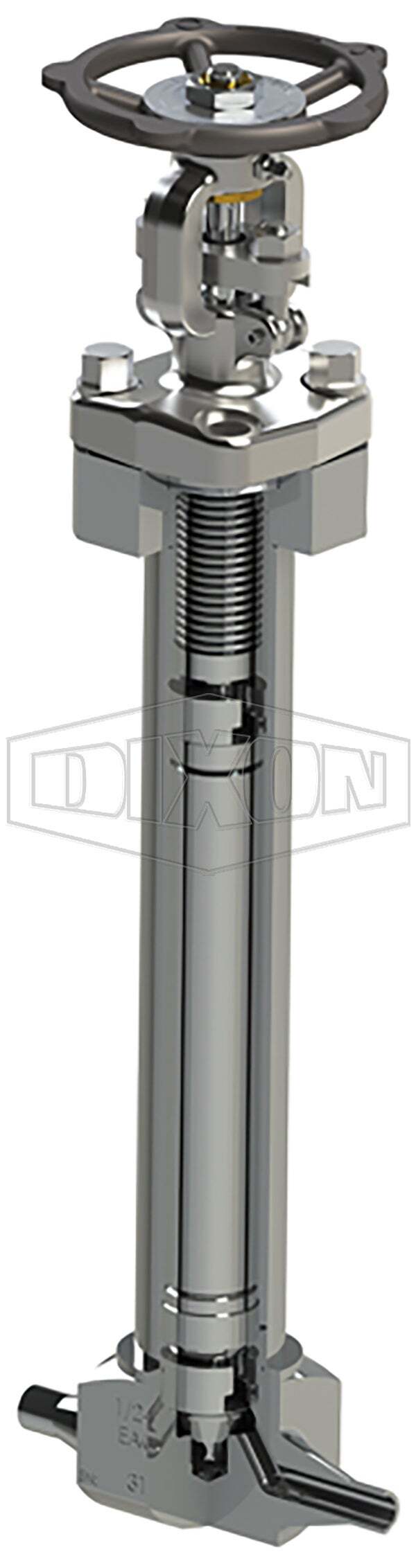

C-Series — cryogenic globe valves

with extended bonnet

Bellows sealed globe valves for cryogenic piping, high-purity industrial gas tanks, ISO containers and transport trailers: LNG, hydrogen, argon, oxygen, nitrogen. Field repairable.

Temperature: −269…+149 °C
Pressure: ASME B16.34 class 800
Materials: body 316L, bonnet F316L, Inconel bellows (10,000 cycles)
Testing: hydro API 598; helium leak 1×10⁻⁷ scc/s; seat bubble-tight to 600 psig nitrogen
Options: PCTFE/PTFE soft seat, purge ports, electropolishing, pneumatic actuator

Ball valves, gate valves and butterfly valves

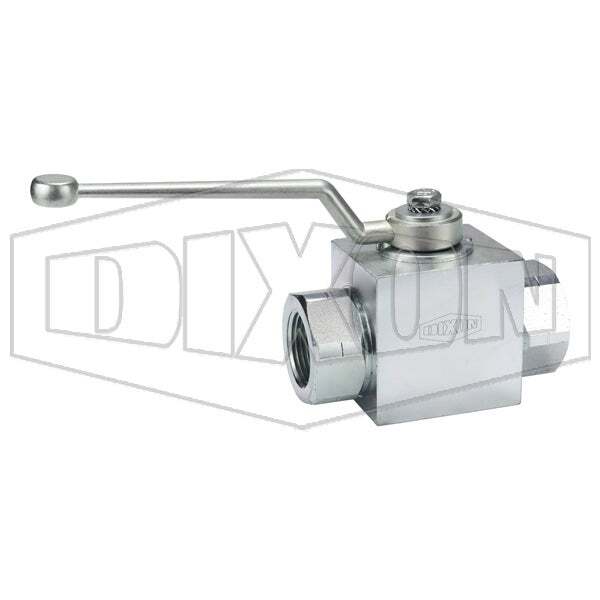

Clear Zinc high-pressure ball valve

For industrial plants, primarily hydraulic oil, and wherever a carbon steel valve is required. Clear zinc plating (RoHS) where black oxide is not enough.

Sizes: ¼"–1" — full port; 1¼"–2" — forged, reduced port
Thread: NPTF or ORB (SAE)
Pressure: ¼"–½" — 507 bar; ¾"–2" — 414 bar
Temperature: −28…+101 °C

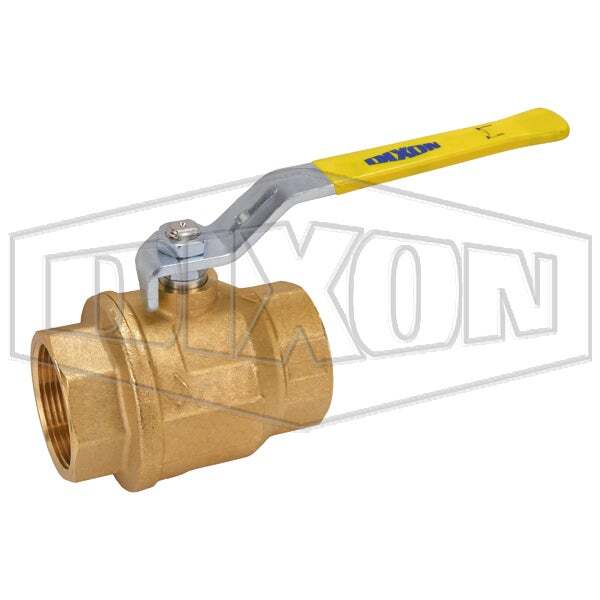

Ball valves

Full port brass ball valve BSP (AGA): 600 psi WOG, steam 150 psi, up to 186 °C — air, water, oil, gas
Mini ball valves
Deadman spring-return valve — fail-safe closed where spillage is dangerous; 600 psi WOG; vacuum to 29" Hg
Fire-safe Class 800 forged steel A105N valve: 1975 psi, API 598, BS 5351 — oil and gas, low-pressure steam, mining
One-piece stainless steel valve, 3-way L-port
SG iron Econovalve for mining, with Minsup lockout

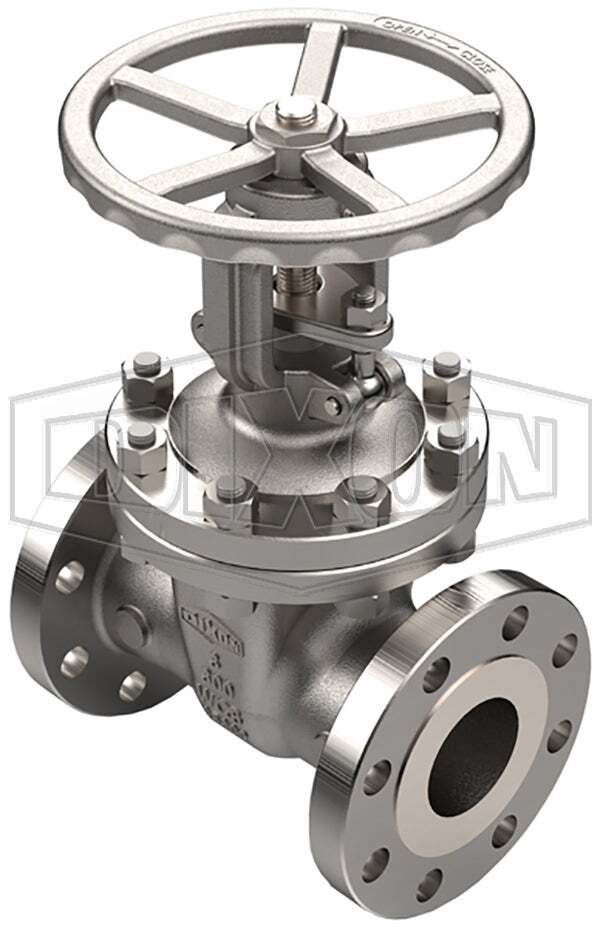

Gate valves and butterfly valves

Class 800 forged gate valve (A105N): steam, up to 427 °C, 1975 psi
ANSI 150 cast steel gate valve to API 600 — petrochemicals, oil and gas, mining, power; 2"–12"
Non-rising stem, shouldered and sluice gate valves to AS 2638.2
Minsup butterfly valves for mining (lockable in 11 positions, NBR lining, CF8M disc), monitored wafer and threaded lug butterfly valves

Check, safety and needle valves

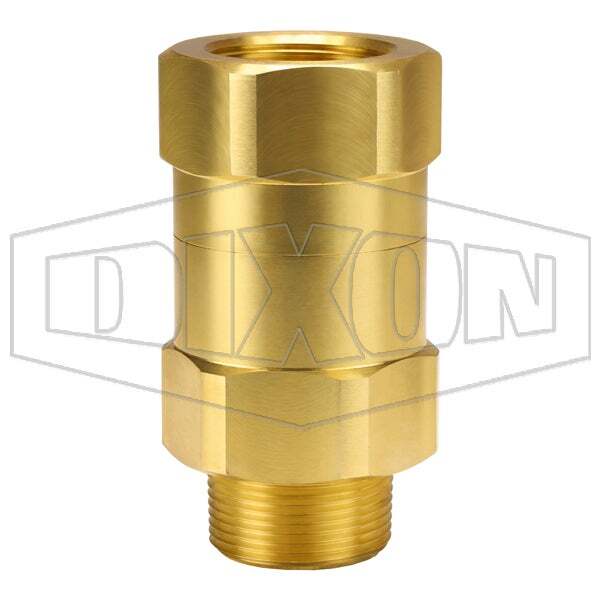

Safety Check valves — automatically shut off air if a hose ruptures, preventing hose whip; OSHA 1926.302(b)(7); 350 psi
Stainless steel and cast iron swing check valves (flanged)
Bronze globe valves, flanged and grooved check valves
Mini needle valves (helium tested 1×10⁻⁴ ml/s) and block-and-bleed valves
PREL relief valve with side outlet: bronze, set 300–1000 kPa, −45…+185 °C — steam, water, oil, air

Filtration systems

DIXON filtration equipment for brewing, beverages, chemicals, coolants, food oils, food processing, spirits, oil and gas, paints and inks, personal care, pulp and paper, semiconductors, detergents, fresh, deionised, sea and waste water, and wine. Sanitary and industrial versions.

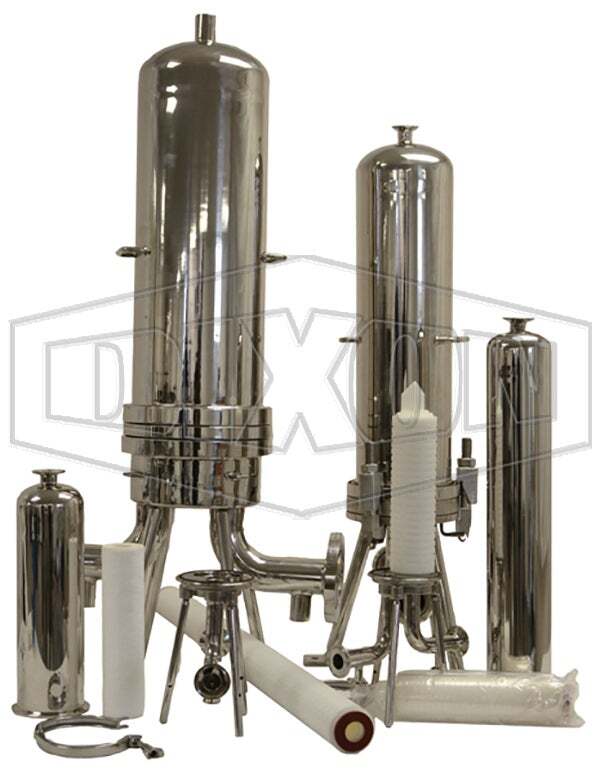

Filter housings

Type	Description	Parameters
FH-SC	sanitary cartridge	1"–4" clamp ports; 1–21 elements 10"–40"; wetted 316L; 32/25 Ra polish or electropolish
FH-CM	industrial, clamped cover	1½" or 2"; 3–7 elements; 150 psi; 148 °C
FH-BM	industrial, bolted cover	1½"–6"; 3–52 elements (up to 225 on request)
FH-CS	single cartridge	¾" or 1"; 10/20/30"; 150 psi
FH-CSB / FH-BSB	single bag	bags #1–4, 12; 316 basket
FH-CMB / FH-BMB	multi-bag	2–23 bags; spring-assist or davit cover lift; ASME stamp optional

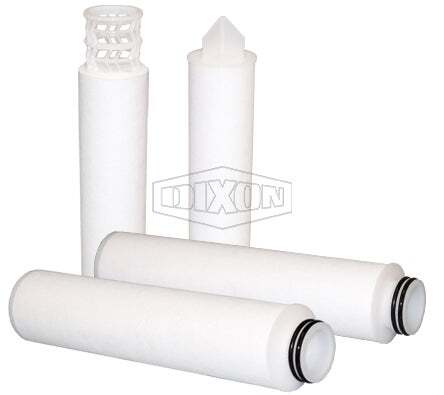

Filter elements

DF-MB — meltblown polypropylene: no glue or binders, 4-zone depth filtration, FDA, 1–100 µm
DF-PES — pleated PES membrane: hydrophilic, low protein binding; 0.1–5 µm; FDA 21 CFR; clean-room manufactured; ΔP up to 45 psid, up to 80 °C
DF-PHE — high-efficiency pleated PP (90% or 99.98%), 0.2–50 µm
DF-CB — coconut carbon block: reduces odour, chlorine taste, particulates
DF-SS — 304/316 stainless cartridges, 5–840 µm, cleanable
DF-SW — string wound (cotton, polyester, PP, rayon), 0.5–100+ µm
DF-B — bag filters (polyester, PP, nylon, oil-absorbing); up to 149 °C (polyester)

Sanitary strainers and hygienic fittings

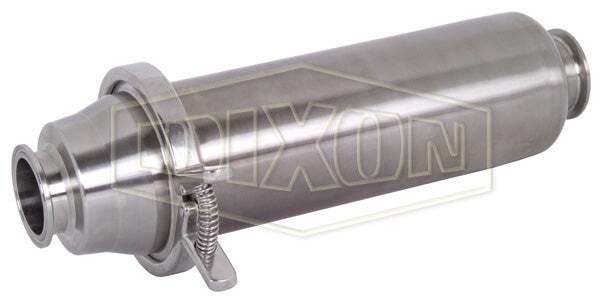

BSCC — sanitary strainers

Inline (short and long), side entry and side outlet, duplex with ball or butterfly valves for continuous operation.

Sizes: 1"–3"; clamp, I-Line, weld ends
Materials: wetted — 316L, NBR (FKM) seals; 32 Ra
Filter media: 40–800 µm; 20–100 mesh screens
Pressure: 290 psi at 21 °C, 175 psi at 99 °C; up to 121 °C

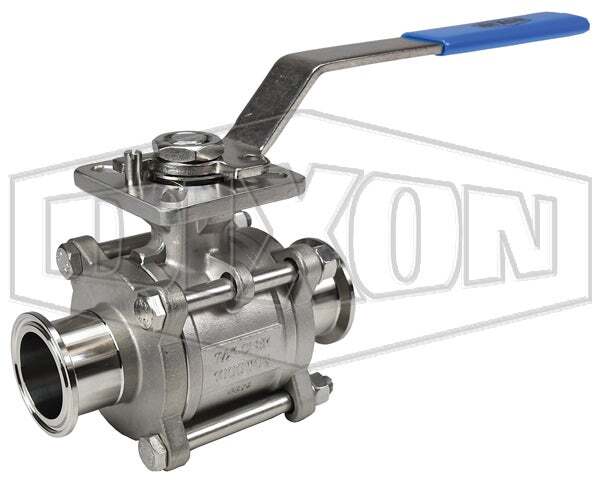

Hygienic fittings

DIN, RJT, SMS, IDF, Tri-Clamp sanitary valves and fittings: butterfly, ball and check valves, sight glasses, fittings for biopharma and dairy. Selected by connection standard and media.

Strainers and marine equipment

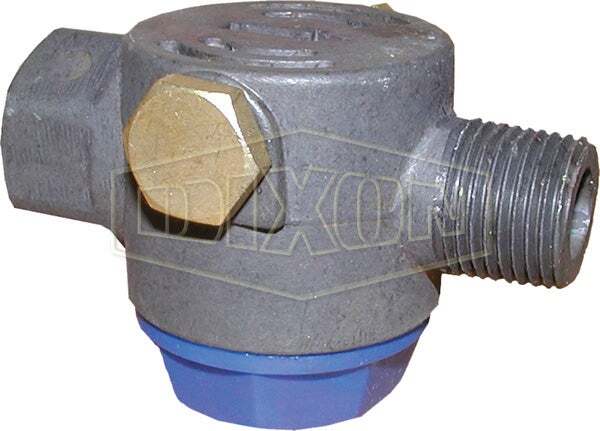

Strainers

Round and square hole (zinc-plated steel, 304)
Cast iron and bronze Y strainers ¼"–2": 400 psi WOG, steam 125–250 psi

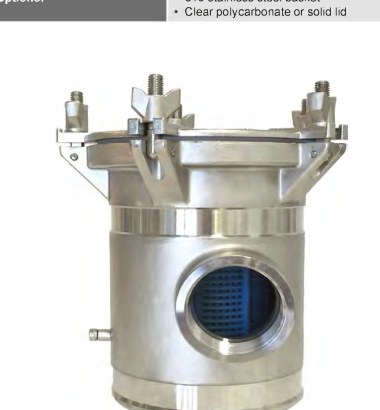

Arctic Steel marine strainers

BISO and SISO

For filtering liquids where high corrosion resistance is required; most often seawater for engines, generators and HVAC systems on vessels. Protect pumps, nozzles and injectors from large particles. The lid is secured by five wing nuts — opens without tools.

Body and lid — electropolished cast AISI 2205 stainless steel
BISO — bottom inlet, side outlet; SISO — side inlet and outlet
Inlet scoop strainers and thru-hull fittings in 2205; 316 baskets; clear lids

Descriptions and specifications are given according to the manufacturers and may change. Please confirm parameters with our specialists before ordering.

Questions and answers

Frequently asked questions

Do you have valves for cryogenic media?

Yes: Eagle C-Series cryogenic globe valves (down to −269 °C), MannTek DCC cryogenic couplings and CBC breakaway couplings for LNG.

Can you match a filter element to another manufacturer’s equivalent?

Yes, DIXON elements come in standard sizes and are interchangeable with other manufacturers’ products — we will match them by dimensions, end caps and rating.
