DIXON Hoses and Hose Assemblies

Industrial hoses and assemblies with testing and certificates: air and water, food, oil and chemicals, steam, abrasives, metal hoses and PTFE hoses.

Request a quotation Full catalog

DIXON Group Europe is a specialist supplier of industrial hoses and hose assemblies, certified to the Pressure Equipment Directive 2014/68/EU (PED) to manufacture flexible hose assemblies. Manufacturing and engineering facilities are BSI approved to ISO 9001, with over 100 years of experience. Assemblies are built to order, tested and certified.

Below is manufacturer data: working pressure (WP), temperature and inside diameter (ID). Safety factor 3:1 unless stated otherwise.

Air and water

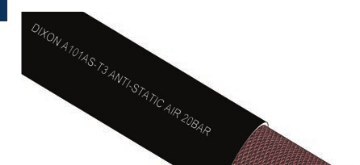

Air and water hoses

Model	Purpose	WP	Temperature	ID, mm
A101AS-T3	anti-static, BS 2878 — offshore, oil and gas, spark-free	20 bar	−30…+80 °C	6–25
A101HP / A102HP	BS 5118/2, ISO 2398 — agriculture, construction (black / yellow)	20 bar	−20…+80 °C	6–25
A103HP / A105HP	multi-utility: steel mills, shipyards, foundries, automotive; air, water, inert gases	20 bar	−20…+90 °C	19–25
A116EU100	hot air — quarries, mines; steel wire reinforcement	40 bar	−30…+100 °C	51, 76, 102
A190 / A190Y	mandrel built, EN ISO 2398 — mining and construction	20 bar	−20…+70 °C	13–76
A210	suction and delivery for water and mild abrasives	10 bar	−20…+70 °C	25–152
A216	suction and delivery, twin helix	16 bar	−35…+70 °C	51–203
DELVAC / IRRIBULK	PVC suction and delivery — water, slurries, diluted chemicals	8–3.3 bar	−10…+55 °C	19–152

Food and pharmaceutical

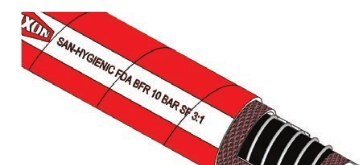

Food hoses

Model	Purpose	WP	Temperature	ID, mm
SANB / SANF	San-Hygienic: liquid foodstuffs, fats, alcohol, potable water; white food-grade NBR; FDA 21 CFR 177.2600, BfR XXI	10 bar	−20…+90 °C	19–102
SAN-SIL	platinum-cured silicone: pharma, food, cosmetics; FDA 177.2600, USP Class VI; 316L helix; 4:1 safety factor	10→3 bar	−40…+200 °C	13–102
DELIKATESSE	non-toxic PVC — foodstuffs at low temperature, smooth bore	—	—	25–76
PREMVIN	food-grade PVC EU 10/2011 — liquids and solids, diluted chemicals	12→2.5 bar	—	13–152

Oil, chemical and general purpose

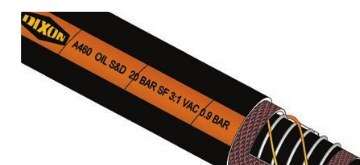

Oil and chemical hoses

Model	Purpose	WP	Temperature
A104	multi-purpose non-conductive: air, water, oil, petroleum products; 4:1 safety factor	20 bar	−20…+100 °C
A110	low-pressure fuel delivery (diesel, heating oil, petrol); 4:1 safety factor	10 bar	−40…+100 °C
A125	mineral oil and air	25 bar	−40…+80 °C
A420	tanker reeling hose; two copper anti-static braids	17 bar	−20…+70 °C
A430	suction and discharge — petrochemicals, docks; up to 50% aromatics	10 bar	−35…+80 °C
A460	suction and discharge, heavy duty	20 bar	−40…+100 °C
A400EU Bulkstream	oil, drilling mud, seawater; tanker loading, offshore; 4:1 safety factor	20 bar	−30…+90 °C
A410 / A416	UHMWPE for acids and alkalis (A416 — FDA, water utilities)	10 / 16 bar	−30…+100 °C (+130 sterilisation)
BAKU	PVC for light fuel oils, diesel, kerosene	vacuum 0.88 bar	−10…+55 °C

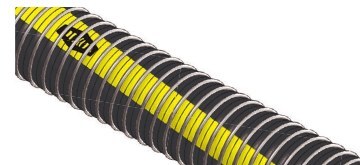

DIXON composite hoses

EN 13765:2015 Type 3

14 bar, 4:1 safety factor, −30…+80 °C (A911 — up to +120 °C), DN 25–100 mm, electrical continuity to BS 5842.

A901GG DIXOIL — petroleum products: tank trucks, refineries, environmental services
A901AG — vapour recovery: fuel stations, refineries (aluminium inner wire)
A906PG DIXCHEM — chemicals (PP-coated wire; A906PS version with stainless wires)
A911SG — PTFE-lined for aggressive chemicals and foods

Steam and abrasive

Steam hoses — 10:1 safety factor. The manufacturer requires genuine DIXON Boss steam couplings and clamps only.

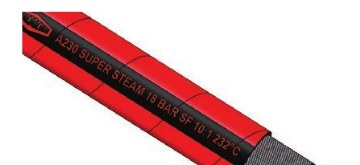

Steam hoses

Model	Purpose	WP	Temperature
A230	high-pressure saturated steam, BS 5342 A2 — refinery and petrochemical maintenance; 2 steel wire braids	18 bar	−40…+210 °C (232 intermittent)
A235BK	saturated steam, BS 5122 A2 — textile industry	7 bar	−20…+170 °C
A235BU	steam, hot water, food; white FDA EPDM	7 bar	steam 170 °C, water 95 °C

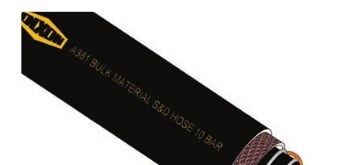

Abrasive

A361 — bulk materials, 10 bar: mining, construction, foundries, bulk transport; anti-static NR, −40…+70 °C
PREMFLEX MDSE — PVC for chemical solutions, abrasive slurries and solids

Metal hoses and PTFE hoses

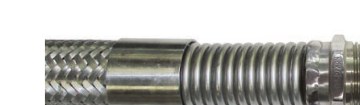

Metal hoses and assembly fabrication

For steam, compressed air, petrochemicals and vacuum — high pressure, temperature and corrosive media. They absorb angular movement, thermal expansion, vibration and misalignment.

EN ISO 10380 class 1; PED 2014/68/EU via Lloyd’s Register (NB 0038)
AISI 316L or 321 corrugated hose and exotic alloys, AISI 304 braid; single, double or triple braid; HP and THP
Inspection: radiography, NDT, dye penetrant, PMI; welders qualified to EN and ASME
Ends: threaded, flanged, cam & groove, gas couplings, to drawing; pipework fabrication

Sizes: 6–300 mm
Temperature: −200…+650 °C
Series: Adflex (commercial), Suparflex (standard pitch), HP/THP (high pressure)

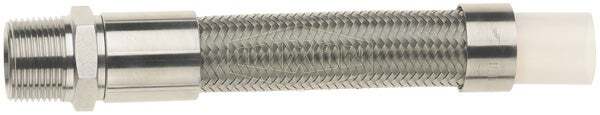

PTFE hoses

Smooth-bore PTFE with stainless steel braid: FDA, 6–25 mm, −60…+260 °C; inert to virtually all chemicals, acids, solvents, hydraulic fluids; no moisture absorption; easy to clean and sterilise
Convoluted and anti-static PTFE with stainless braid and external vacuum wire: 10–100 mm
Convoluted PTFE with polypropylene braid: 20–100 mm, −30…+95 °C, 10 bar
Options: bounce rings, spiral guard, heat tracing, duplex, anti-static liner

Specialist hoses and assemblies

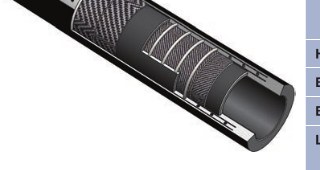

Bulkstream — hand-built hoses

Hand built, with built-in or crimped ends.

Diameter: 51–1000 mm
Pressure: 3.5–40 bar, vacuum 0.9 bar
Temperature: −30…+150 °C
Standards: BS EN 1765 (shore-to-ship, ship-to-ship), EN 12115 (chemical), Lloyd’s approval
Liner: NBR — fuels, oils, drilling mud; EPDM — chemicals, seawater and hot water; NR — powders, sand, animal feed, abrasives

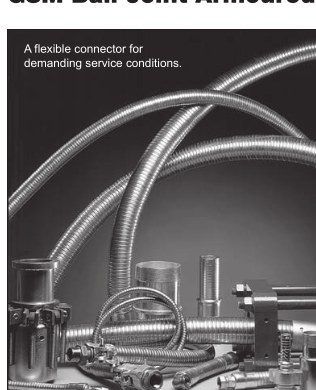

GSM — ball-joint armoured hoses

Resistant to kinking, external heat and abrasion; galvanised or stainless armour; rubber, PTFE or metal inner hose; fibreglass insulation layers. For water, oxygen and gas at steel mills.

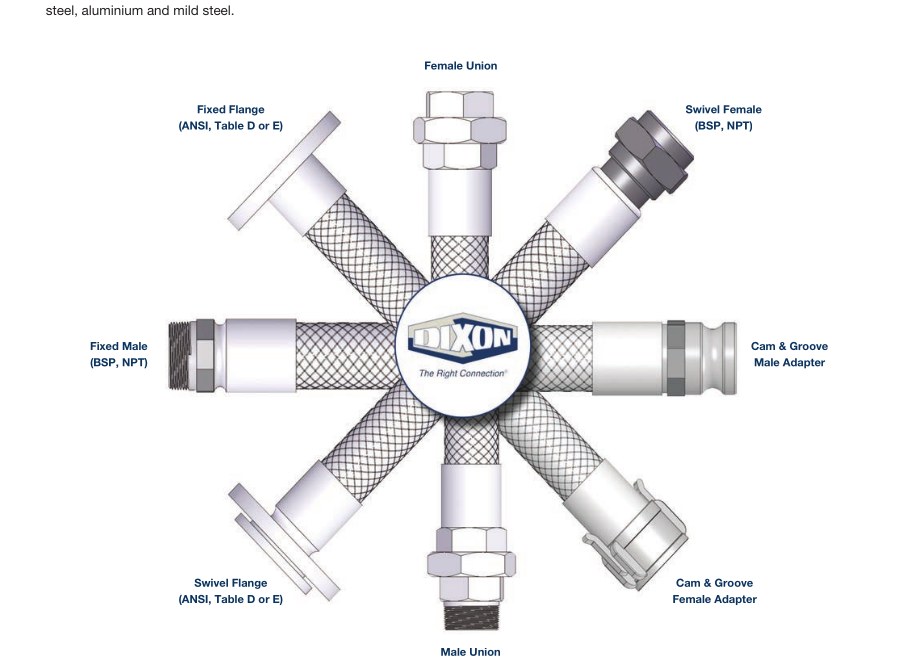

Assembly end fittings

Fixed and swivel flanges (ANSI, Table D/E), female swivel, BSP/NPT, cam & groove; stainless steel, aluminium, steel. Every assembly is tested with 150 psi air under water and supplied with a certificate.

Descriptions and specifications are given according to the manufacturers and may change. Please confirm parameters with our specialists before ordering.

Questions and answers

Frequently asked questions

Do you build tested hose assemblies?

Yes. We supply hose assemblies on DIXON fittings with hydrostatic testing and certificates, as well as hoses with built-in vulcanised fittings.

Do you have marine loading hoses?

Yes: Bulkstream to EN 1765 and CAVMAC marine oil hoses to EN 1765 — see the “Marine oil hoses” section.
